Folding Bracket - Hebgo - 150 kg Load Bearing Capacity
| Material: | Steel |
| Version: | With locking mechanism |
| Finish: | Grey Primed |
| Capacity: | 75 kg per piece (150 kg per pair) |
| Function: | To raise bracket lift support arm and allow to engage automatically To fold down lift the support arm and release locking mechanism |
| Packing: | 1 piece |
| Note: | The specified load bearing capacities are sample measurements: With centre of support arms loaded With proper and reliable attachment to the wall |

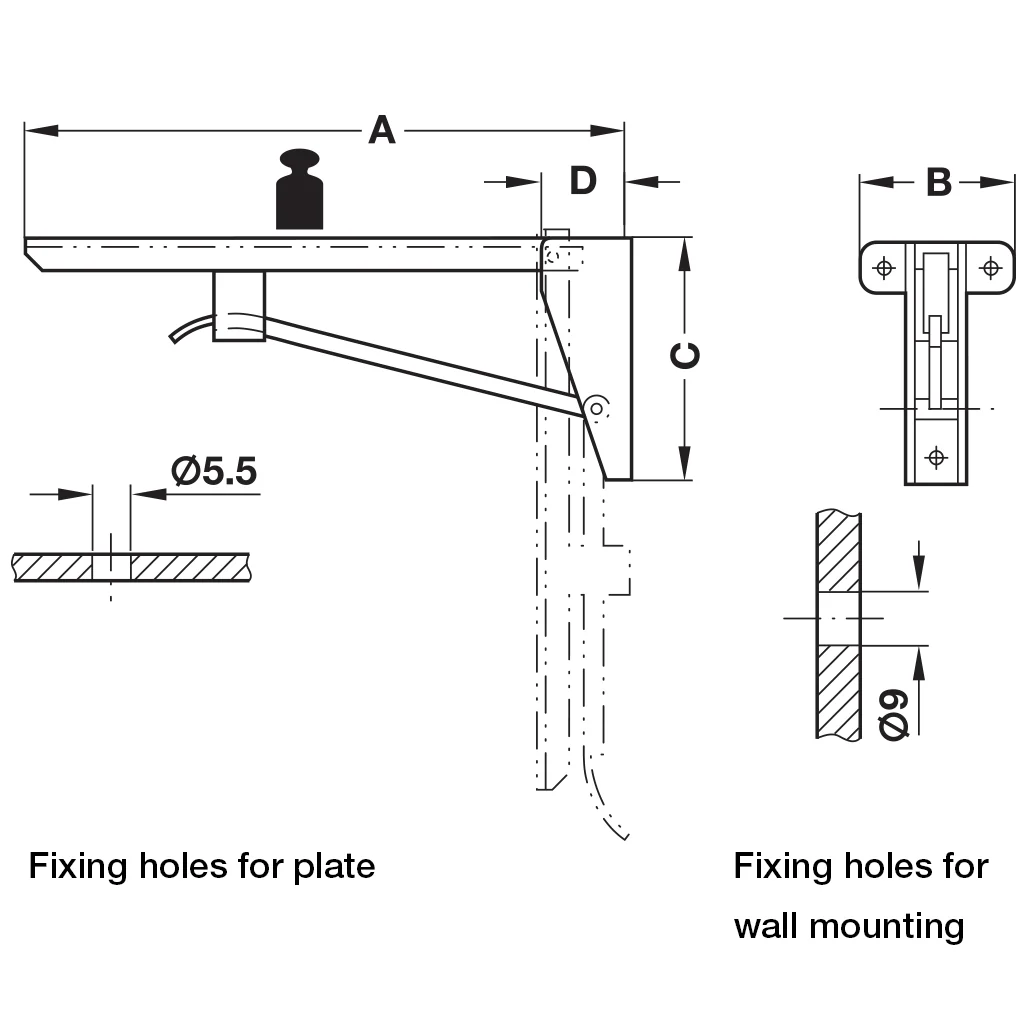

| Dim. A | Dim. B | Dim. C | Dim. D | Art. No. |
| 330 mm | 82 mm | 134 mm | 50 mm | 287.42.403 |
| 380 mm | 82 mm | 134 mm | 50 mm | 287.42.412 |
| 480 mm | 82 mm | 152 mm | 50 mm | 287.42.421 |
| 580 mm | 82 mm | 178 mm | 50 mm | 287.42.430 |
Select Length (A)
From $44.38
Original: $126.79
-65%Folding Bracket - Hebgo - 150 kg Load Bearing Capacity—
$126.79
$44.38
Description
| Material: | Steel |
| Version: | With locking mechanism |
| Finish: | Grey Primed |
| Capacity: | 75 kg per piece (150 kg per pair) |
| Function: | To raise bracket lift support arm and allow to engage automatically To fold down lift the support arm and release locking mechanism |
| Packing: | 1 piece |
| Note: | The specified load bearing capacities are sample measurements: With centre of support arms loaded With proper and reliable attachment to the wall |
| Dim. A | Dim. B | Dim. C | Dim. D | Art. No. |
| 330 mm | 82 mm | 134 mm | 50 mm | 287.42.403 |
| 380 mm | 82 mm | 134 mm | 50 mm | 287.42.412 |
| 480 mm | 82 mm | 152 mm | 50 mm | 287.42.421 |
| 580 mm | 82 mm | 178 mm | 50 mm | 287.42.430 |
