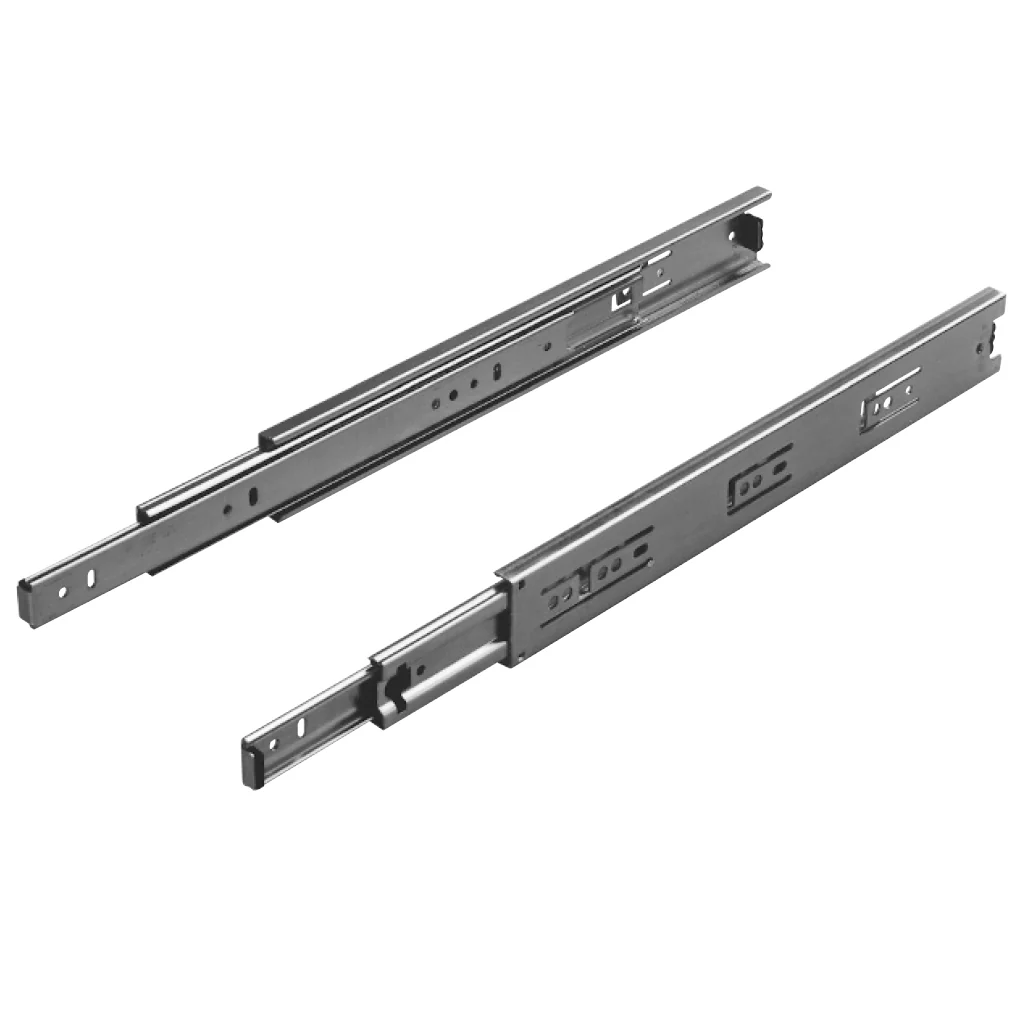

Ball Bearing Drawer Runner

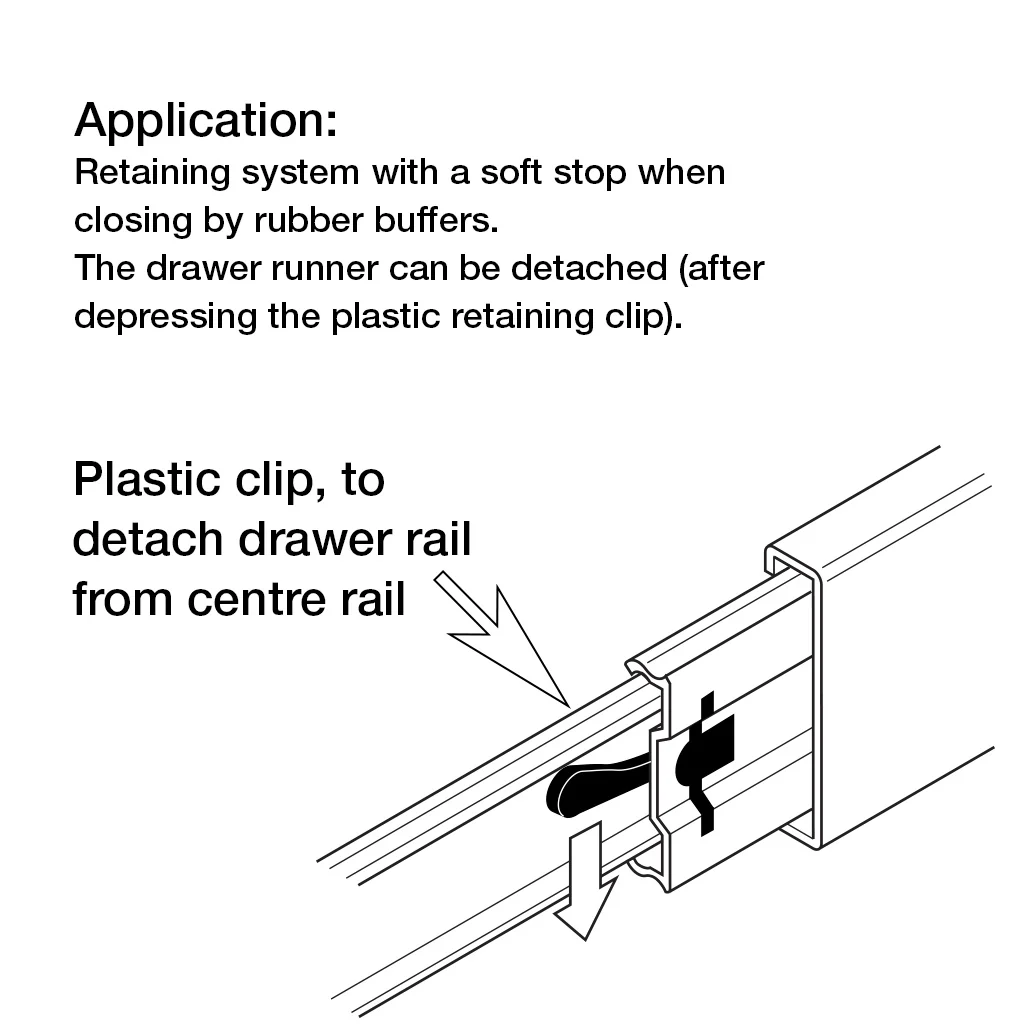

| Â Application: | Retaining system with a soft stop when closing by rubber buffers. The drawer runner can be detached (after depressing the plastic retaining clip) |
| Â Material: | Steel |
| Â Finish: | Black Galvanised |
| Â Guided by: | 2 ball cages |

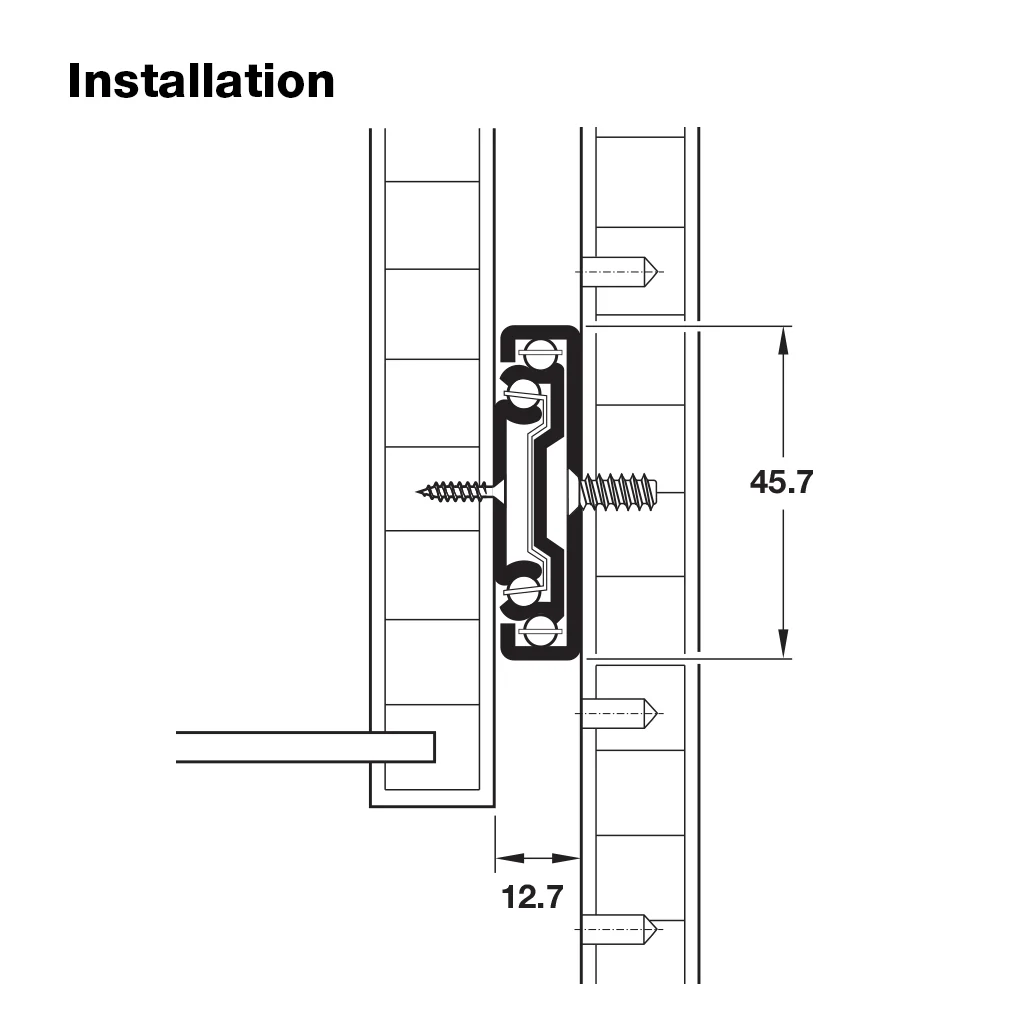

| Â Fitting to the carcase: | Screw fixing |
| Â Fitting to drawer: | Screw fixing, side mounted |
| Â Packing: | 1 pair |
| Installed length | Extended length | Weight capacity | Art. No. |
| 250 mm | 250 mm | 30 kg | 422.58.325 |
| 300 mm | 300 mm | 35 kg | 422.58.330 |
| 350 mm | 350 mm | 40 kg | 422.58.335 |
| 400 mm | 400 mm | 45 kg | 422.58.340 |
| 450 mm | 450 mm | 45 kg | 422.58.345 |
| 500 mm | 500 mm | 45 kg | 422.58.350 |
| 550 mm | 550 mm | 45 kg | 422.58.355 |
| 600 mm | 600 mm | 40 kg | 422.58.360 |
| 650 mm | 650 mm | 40 kg | 422.58.365 |
Select Installed Length
From $2.26
Original: $6.46
-65%Ball Bearing Drawer Runner—
$6.46
$2.26
Description
| Â Application: | Retaining system with a soft stop when closing by rubber buffers. The drawer runner can be detached (after depressing the plastic retaining clip) |
| Â Material: | Steel |
| Â Finish: | Black Galvanised |
| Â Guided by: | 2 ball cages |
| Â Fitting to the carcase: | Screw fixing |
| Â Fitting to drawer: | Screw fixing, side mounted |
| Â Packing: | 1 pair |
| Installed length | Extended length | Weight capacity | Art. No. |
| 250 mm | 250 mm | 30 kg | 422.58.325 |
| 300 mm | 300 mm | 35 kg | 422.58.330 |
| 350 mm | 350 mm | 40 kg | 422.58.335 |
| 400 mm | 400 mm | 45 kg | 422.58.340 |
| 450 mm | 450 mm | 45 kg | 422.58.345 |
| 500 mm | 500 mm | 45 kg | 422.58.350 |
| 550 mm | 550 mm | 45 kg | 422.58.355 |
| 600 mm | 600 mm | 40 kg | 422.58.360 |
| 650 mm | 650 mm | 40 kg | 422.58.365 |
